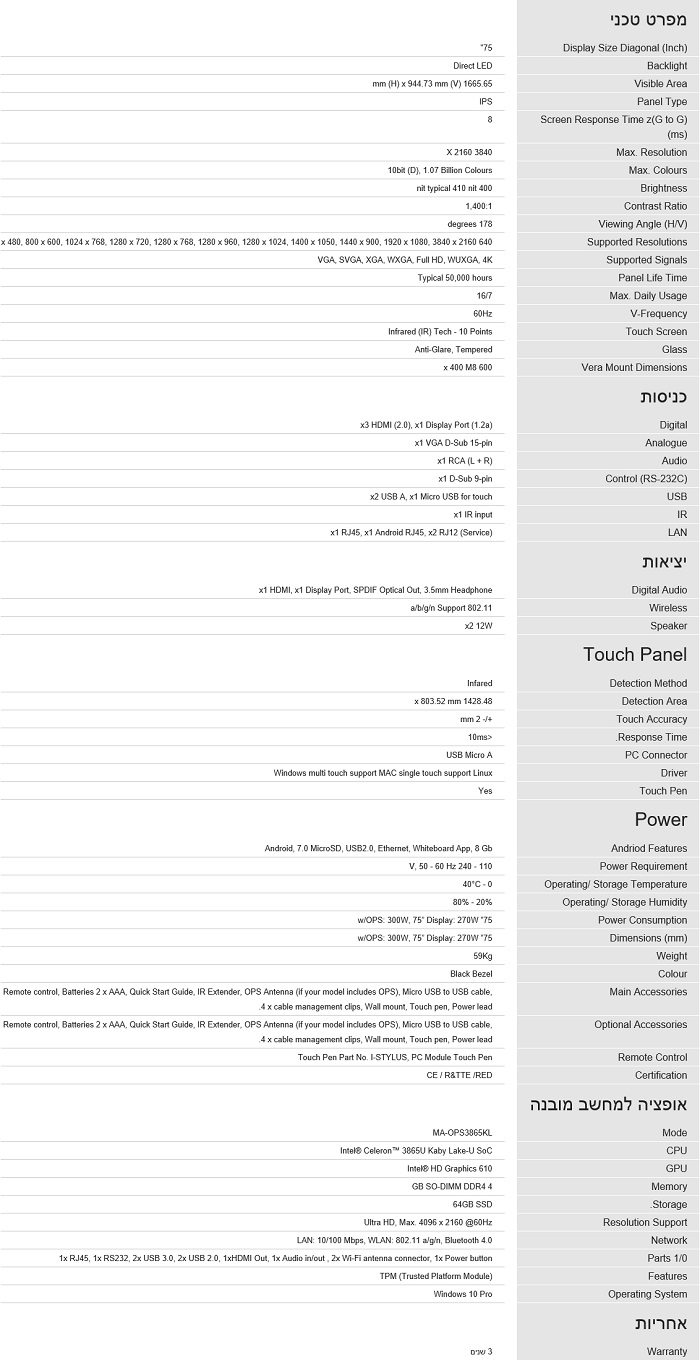

מפרט
|
Display Size Diagonal (Inch)
75"
Backlight
Direct LED
Visible Area
1665.65 mm (H) x 944.73 mm (V)
Panel Type
IPS
Screen Response Time z(G to G) (ms)
8
Max. Resolution
3840 X 2160
Max. Colours
10bit (D), 1.07 Billion Colours
Brightness
400 nit typical 410 nit
Contrast Ratio
1,400:1
Viewing Angle (H/V)
178 degrees
Supported Resolutions
640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 960, 1280 x 1024, 1400 x 1050, 1440 x 900, 1920 x 1080, 3840 x 2160
Supported Signals
VGA, SVGA, XGA, WXGA, Full HD, WUXGA, 4K
Panel Life Time
Typical 50,000 hours
Max. Daily Usage
16/7
V-Frequency
60Hz
Touch Screen
Infrared (IR) Tech - 10 Points
Glass
Anti-Glare, Tempered
Vera Mount Dimensions
600 x 400 M8
Input Terminals
Digital
x3 HDMI (2.0), x1 Display Port (1.2a)
Analogue
x1 VGA D-Sub 15-pin
Audio
x1 RCA (L + R)
Control (RS-232C)
x1 D-Sub 9-pin
USB
x2 USB A, x1 Micro USB for touch
IR
x1 IR input
LAN
x1 RJ45, x1 Android RJ45, x2 RJ12 (Service)
Output Terminals
Digital Audio
x1 HDMI, x1 Display Port, SPDIF Optical Out, 3.5mm Headphone
Wireless
802.11 a/b/g/n Support
Speaker
x2 12W
Touch Panel
Detection Method
Infared
Detection Area
1665.65 x 944.73 mm
Touch Accuracy
+/- 2 mm
Response Time.
<10ms
PC Connector
USB Micro A
Driver
Windows multi touch support MAC single touch support Linux
Touch Pen
Yes
Power
Andriod Features
Android, 7.0 MicroSD, USB2.0, Ethernet, Whiteboard App, 8 Gb
Power Requirement
110 - 240 V, 50 - 60 Hz
Operating/ Storage Temperature
0 - 40°C
Operating/ Storage Humidity
20% - 80%
Power Consumption
75” w/OPS: 300W, 75” Display: 270W
Dimensions (mm)
75” w/OPS: 300W, 75” Display: 270W
Weight
1731 (w) x 1008 (h) x 119 (d) mm
Colour
59Kg
Main Accessories
White Bezel
Optional Accessories
Remote control, Batteries 2 x AAA, Quick Start Guide, IR Extender, OPS Antenna (if your model includes OPS), Micro USB to USB cable, 4 x cable management clips, Wall mount, Touch pen, Power lead.
Remote Control
Touch Pen Part No. I-STYLUS, PC Module Touch Pen
Certification
CE / R&TTE /RED
PC Module Specification (Two types available as an accessory)
Mode
MA-OPS7200KL
CPU
Intel® Core™ i5-7200U Kaby Lake-U SoC
GPU
Intel® HD Graphics 620
Memory
8 GB SO-DIMM DDR4
Storage.
500 GB HDD
Resolution Support
Ultra HD, Max. 4096 x 2160 @60Hz
Network
LAN: 10/100 Mbps, WLAN: 802.11 a/g/n, Bluetooth 4.0
1/0 Parts
1x RJ45, 1x RS232, 2x USB 3.0, 2x USB 2.0, 1xHDMI Out, 1x Audio in/out , 2x Wi-Fi antenna connector, 1x Power button
Features
TPM (Trusted Platform Module)
Operating System
Windows 10 Pro
Warranty
Warranty
3 or 5 years (Please check with your local dealer)
|
